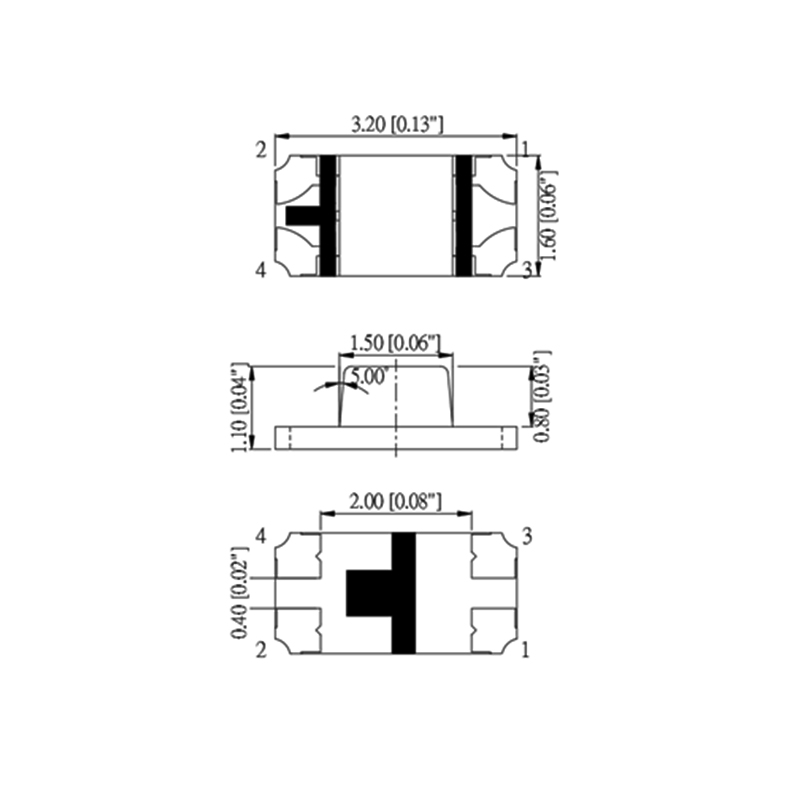

Customized service:we can produce the smd led according to the parameters and package size
Small apprearance
Low power consumption
Wide view angle
Long life
High reliablity
Energy-saving
High brightness
RoHS Compliant
Electro optical characteristics(Ta=25°C)
| Type | Part No | Emitted color | Forward voltage(Vf) | Luminous intensity | Wavelengthe(nm)/CCT(K) | Current(Ma) | Viewing angle | |||
| Min | Max | Min | Max | Min | Max | |||||
| 3216 | MH-3216QRQYC | Red | 1.8 | 2.4 | 60 | 130 | 620 | 630 | 20 | 120 |
| Yellow | 1.8 | 2.4 | 80 | 160 | 585 | 595 | ||||
| 3216 | MH-3216QRQYGC | Red | 1.8 | 2.4 | 60 | 130 | 620 | 630 | 20 | 120 |
| Yellow-green | 1.8 | 2.4 | 20 | 60 | 560 | 570 | ||||
| 3216 | MH-3216QYQYGC | Yellow | 1.8 | 2.4 | 80 | 200 | 585 | 595 | 20 | 120 |
| Yellow-green | 1.8 | 2.4 | 30 | 80 | 560 | 570 | ||||
| 3216 | MH-3216QRQBC | Red | 1.8 | 2.4 | 80 | 180 | 620 | 630 | 20 | 120 |
| Blue | 2.8 | 3.4 | 80 | 150 | 460 | 470 | ||||
| 3216 | MH-3216QRQGC | Red | 1.8 | 2.4 | 80 | 180 | 620 | 630 | 20 | 120 |
| Pure Green | 2.8 | 3.4 | 320 | 800 | 520 | 530 | ||||
| 3216 | MH-3216QRQWC | Green | 2.8 | 3.4 | 630 | 1250 | 520 | 530 | 20 | 120 |
| white | 2.8 | 3.4 | 630 | 1250 | 2800 | 12000 | ||||
| 3216 | MH-3216QBQGC | Blue | 2.8 | 3.4 | 80 | 150 | 460 | 470 | 20 | 120 |
| Pure Green | 2.8 | 3.4 | 320 | 800 | 520 | 530 | ||||
| 3216 | MH-3216QRQBQGC | Red | 1.8 | 2.4 | 80 | 180 | 620 | 630 | 20 | 120 |
| Pure Green | 2.8 | 3.4 | 320 | 800 | 520 | 530 | ||||
| Blue | 2.8 | 3.4 | 80 | 150 | 460 | 470 | ||||
| 3216 | MH-3216QRQYQWC | Red | 1.8 | 2.4 | 100 | 200 | 620 | 630 | 20 | 120 |
| Yellow | 1.8 | 2.4 | 100 | 200 | 585 | 595 | ||||
| white | 2.8 | 3.4 | 400 | 800 | 2800 | 12000 | ||||
