Type：LED Modules

Emitting Color：Red/orange/yellow/green/blue/white

Luminous Flux(lm)：15000-18000WL

Optical Attenuation(%)：5

Power：3W

Power Dissipation：0.3

Viewing Angle(°)：120

Color Rendering Index(Ra)：85

Color Temperature/Dominant wavelength：2800-12000K/620-630nm/600-610nm/585-595nm/565-575nm/520-530nm/460-470nm

Operating Temperature(℃)：-10 - 60

Storage Temperature(℃)：-20 - 70

Place of Origin：Guangdong, China (Mainland)

Brand Name：XMH

Certification：RoHS

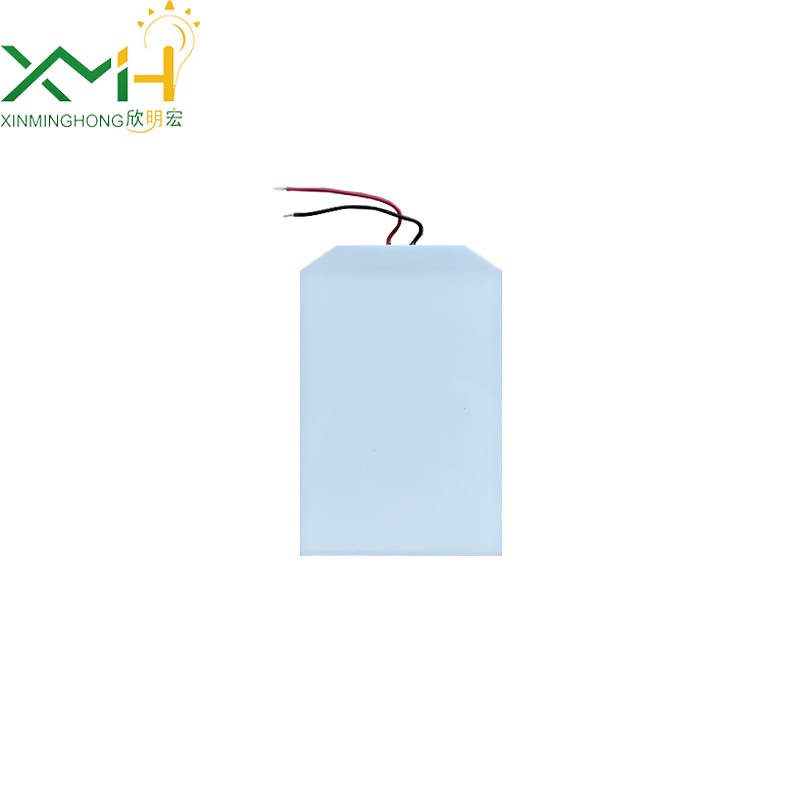

1,Side LED backlight constitue: diffusion film,reflect film,light guide plate, shading area,led, PCB

2,light guide plaste thickness 0.4-5mm

3,Application: LCD display screens backlight,LED advertision panel, logo light back.

4,Connector way:pins ,pcb touch, FPC,SMD, connector terminal.

5,Working voltage: green/blue/white:2.8-3.5v   red/orange/yellow:1.8-2.4v

6,in order to quote exact,please give us the following specification:

   6-1 size of the backlight board

   6-2 thickness of light guide panel

   6-3 brightness of the backlight

   6-4 connector way like as DIP led ,PIN,SMD or FPC

   6-5 picture of appearance or sketch of the backlight

   6-6 emitting color of backlight

   6-7 related electrical parameter requirements like as voltage
