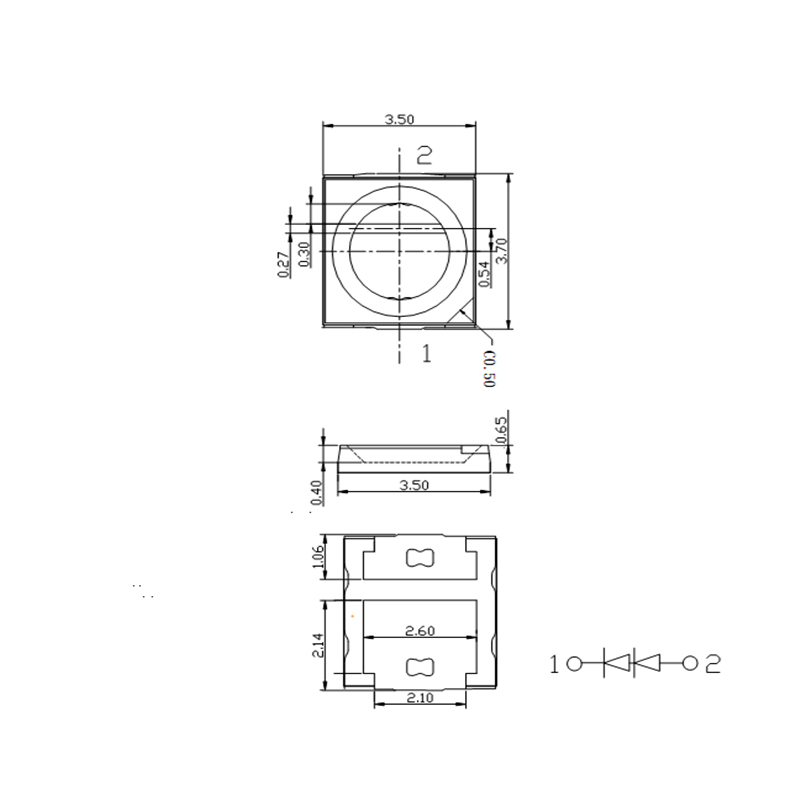

Customized service:we can produce the smd led according to the parameters and package size
Small apprearance
1-3W power consumption
Wide view angle
Long life
High reliablity
Energy-saving
High brightness
RoHS Compliant
Electro optical characteristics(Ta=25°C)
| Type | Part No | Emitted color | Forward voltage(Vf) | Luminous flux（LM） | Wavelengthe(nm)/CCT(K) | Current(Ma) | Viewing angle | |||
| Min | Max | Min | Max | Min | Max | |||||
| 3535 | MH-3535QRC-1W | Red | 1.8 | 2.4 | 30 | 40 | 620 | 630 | 350 | 120 |
| 3535 | MH-3535QYC-1W | Yellow | 1.8 | 2.4 | 40 | 60 | 585 | 595 | 350 | 120 |
| 3535 | MH-3535QOC-1W | Orange | 1.8 | 2.4 | 30 | 40 | 600 | 610 | 350 | 120 |
| 3535 | MH-3535QBC-1W | Blue | 2.8 | 3.4 | 20 | 30 | 460 | 470 | 350 | 120 |
| 3535 | MH-3535QGC-1W | Pure Green | 2.8 | 3.4 | 80 | 100 | 520 | 530 | 350 | 120 |
| 3535 | MH-3535WWC-1W | Warm white | 2.8 | 3.4 | 110 | 140 | 2000 | 3000 | 350 | 120 |
| 3535 | MH-3535NWC-1W | Natural white | 2.8 | 3.4 | 120 | 140 | 5000 | 6500 | 350 | 120 |
| 3535 | MH-3535CWC-1W | Cool white | 2.8 | 3.4 | 110 | 140 | 8000 | 20000 | 350 | 120 |
