smd led

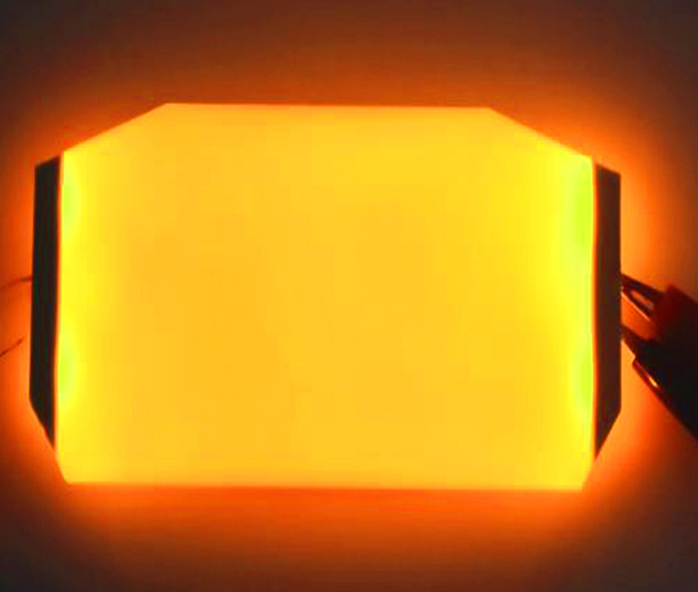

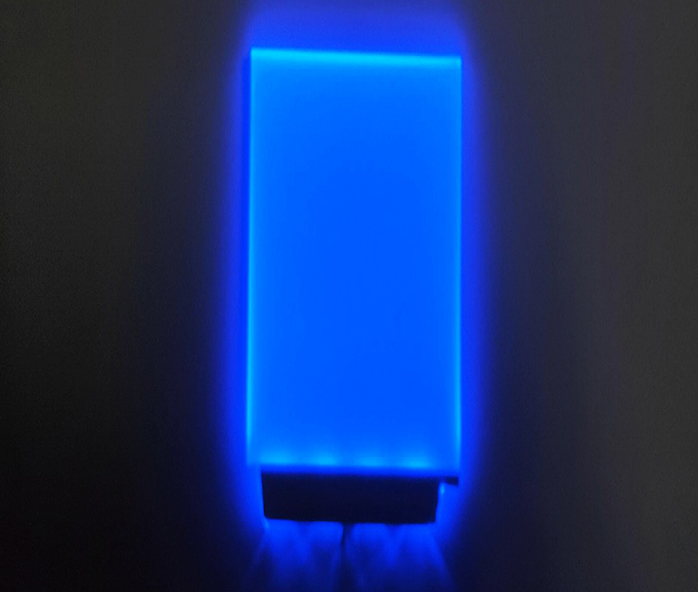

led backlight

led backlight

Customized service:we can produce the smd led according to the parameters and package size


Small apprearance

Low power consumption

Wide view angle

Long life

High reliablity

Energy-saving

High brightness

RoHS Compliant




Type:LED Modules

Emitting Color:Red  yellow blue green white

Luminous Flux(lm):15000-18000WL

Optical Attenuation(%):5

Power:3W

Power Dissipation:0.3

Viewing Angle(°):120

Color Rendering Index(Ra):85

Color Temperature:15000

Operating Temperature():-10 - 60

Storage Temperature():-20 - 70

Place of Origin:Guangdong, China (Mainland)

Brand Name:XMH

Certification:RoHS


1,Side LED backlight constitue: diffusion film,reflect film,light guide plate, shading area,led, PCB

2,light guide plaste thickness 0.4-5mm

3,Application: LCD display screens backlight,LED advertision panel, logo light back.

4,Connector way:pins ,pcb touch, FPC,SMD, connector terminal.

5,Working voltage: white:2.8-3.5v   red yellow blue green:1.8-2.4v

6,in order to quote exact,please give us the following specification:

   6-1 size of the backlight board

   6-2 thickness of light guide panel

   6-3 brightness of the backlight

   6-4 connector way like as DIP led ,PIN,SMD or FPC

   6-5 picture of appearance or sketch of the backlight

   6-6 emitting color of backlight

   6-7 related electrical parameter requirements like as voltage

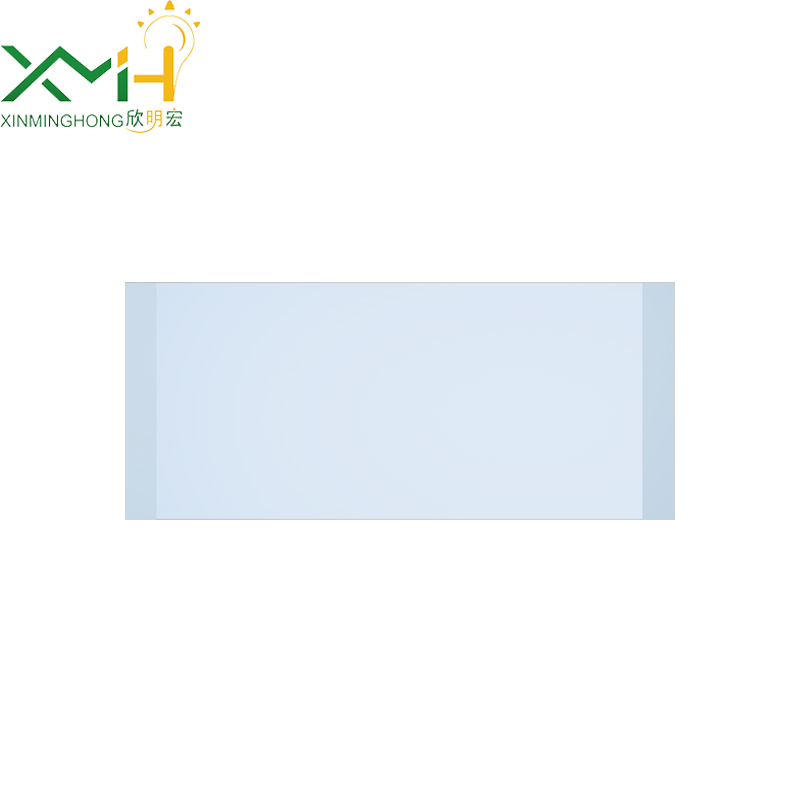

Lead Frame led
