smd led

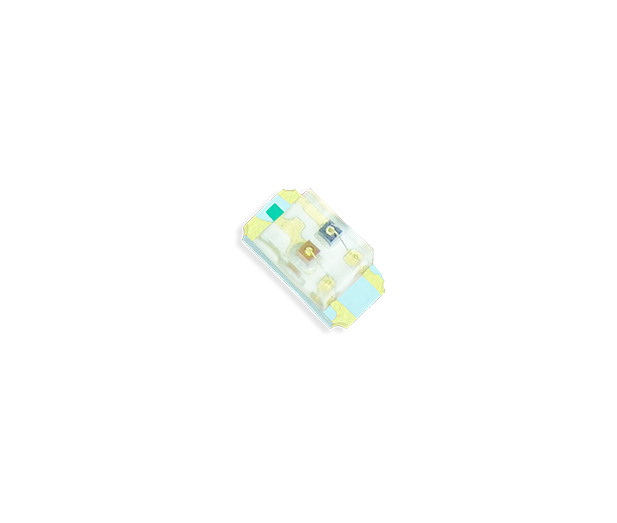

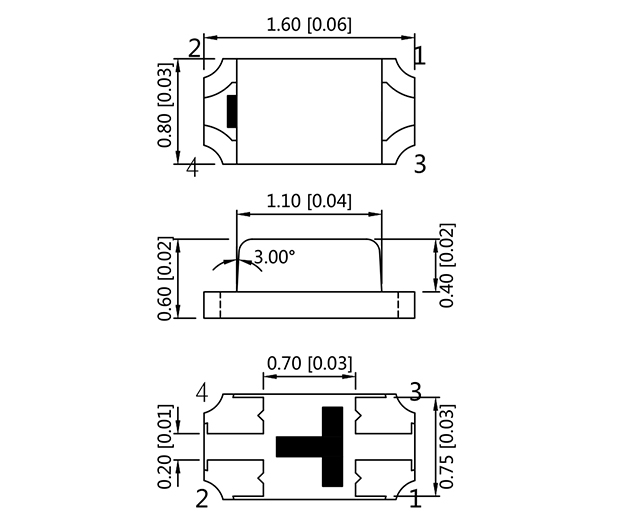

1608 Multi-color

led backlight

Customized service:we can produce the smd led according to the parameters and package size


Small apprearance

Low power consumption

Wide view angle

Long life

High reliablity

Energy-saving

High brightness

RoHS Compliant


Electro optical characteristics(Ta=25°C)

TypePart NoEmitted colorForward   voltage(Vf)Luminous   intensityWavelengthe(nm)/CCT(K)Current(Ma)Viewing angle
MinMaxMinMaxMinMax
1608MH-190QRQYC-1608Red1.82.410025062063020120
Yellow1.82.480200585595
1608MH-190QRQBC-1608Red1.82.410025062063020120
Blue2.83.480200465475
1608MH-190QRQGC-1608Red1.82.410025062063020120
Pure Green2.83.4350800520530
1608MH-190QRQWC-1608Red1.82.412525062063020120
White2.83.4500800280012000
1608MH-190QOQWC-1608Orange
1.82.410016060061020
120
White
2.83.46301000280012000
1608MH-190QGQWC-1608Green
2.83.4630100052053020
120
White
2.83.46301000280012000
1608MH-190QYQYGC-1608Yellow1.82.48020058559520120
Yellow-green1.82.42563565575
1608MH-190QOQBC-1608Orange
1.82.48020060061020120
Blue2.83.480200465475
1608MH-190QBQGC-1608Blue2.83.410025046547520
120
Pure Green2.83.4350800520530
1608MH-190QRQGQBC-1608Red
1.8
2.4
350
650
620
630
20
120
Green
2.8
3.4
500
1000
520
530
Blue
2.8
3.4
80
200
465
475
1608MH-190QRQOQGC-1608Red
1.82.410025062063020
120
Orange
1.82.480200600610
Pure Green
2.83.45001000520530
1608MH-190QRQYQBC-1608Red1.82.420040062063020
120
Yellow1.82.4200400580590
Blue2.83.4100200460470
1608MH-190QRQYQGC-1608Red1.82.48018062063020
120
Yellow1.82.480180580590
Pure Green2.83.4700900520530

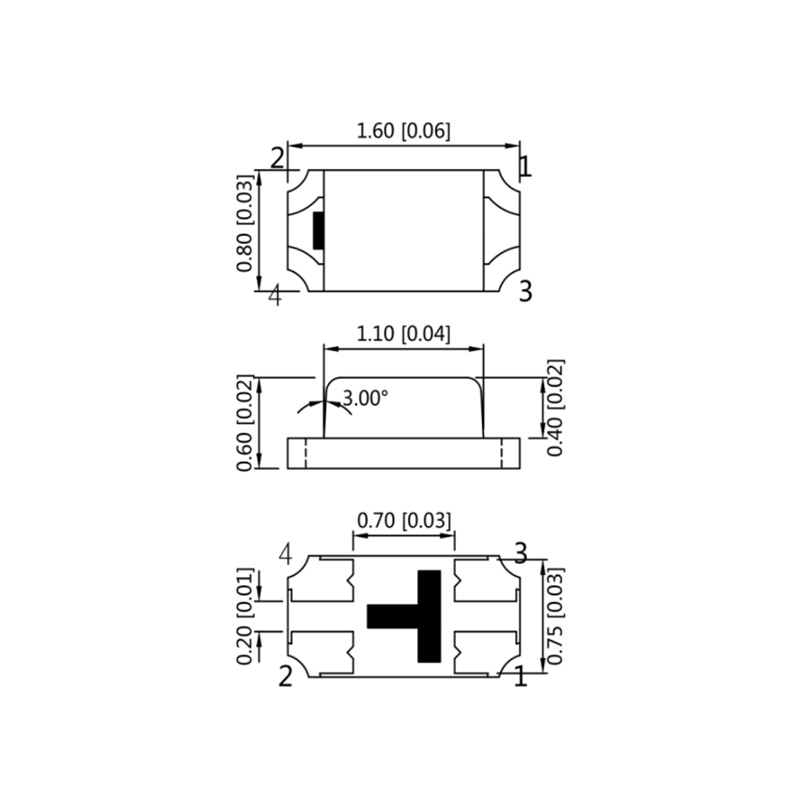

Lead Frame led

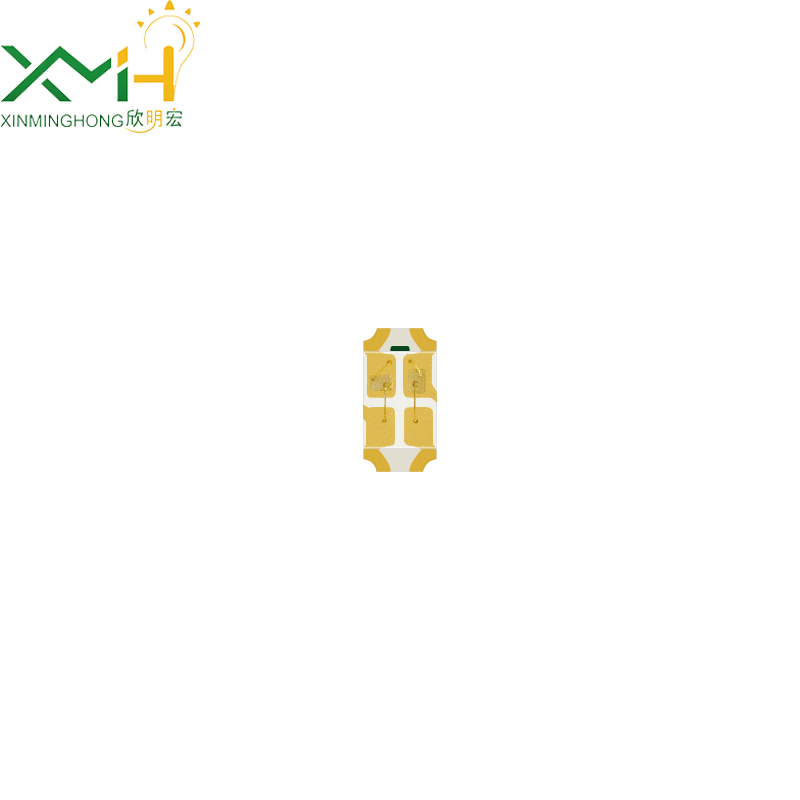

Lead Frame led
