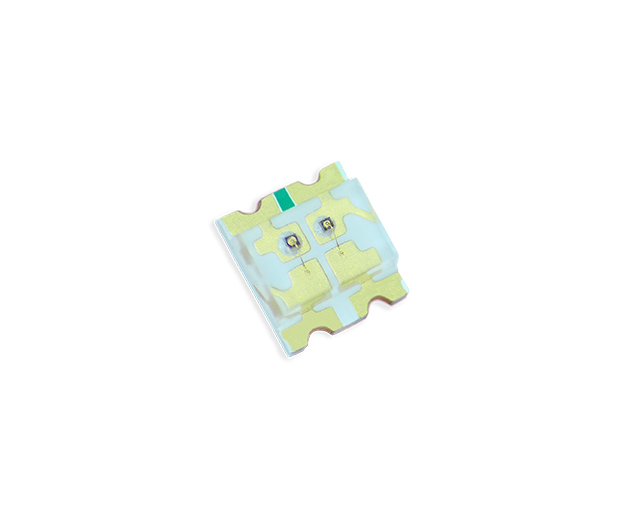

smd led

2018 Multi-color

led backlight

Customized service:we can produce the smd led according to the parameters and package size


Small apprearance

Low power consumption

Wide view angle

Long life

High reliablity

Energy-saving

High brightness

RoHS Compliant



Electro optical characteristics(Ta=25°C)

TypePart NoEmitted   colorForward   voltage(Vf)Luminous   intensityWavelengthe(nm)/CCT(K)Current(Ma)Viewing   angle
MinMaxMinMaxMinMax
2018
MH-2018QRQYGCRed1.82.48012062063020
120
Yellow-green1.82.42580560570
2018
MH-2018QRQGCRed1.82.48012062063020
120
Pure Green2.83.4300500520530
2018

MH-2018QRQBC

Red1.82.48012062063020
120
Blue2.83.460120460470
2018
MH-2018QOQGCOrange1.82.48020060061020
120
Pure Green2.83.4300500520530
2018
MH-2018QOQBCOrange1.82.48020060061020
120
Blue2.83.460120460470
2018
MH-2018QYQGCYellow
1.8
2.4
80
200
585
595
20
120
Pure Green2.83.4300500520530
2018

MH-2018QWQGC

White
2.8
3.4
630
1000
2800
10000
20
120
Pure Green2.83.46301000520530
2018MH-2018QRQGQBCRed1.82.48012062063020120
Pure Green2.83.4300500520530
Blue2.83.460120460470
2018MH-2018QRQYQBCRed1.82.48012062063020120
Yellow1.82.480120580590
Blue2.83.460120460470
2018MH-2018QOQWQGCRed1.82.48012062063020120
white2.83.430080050008000
Pure Green2.83.4300500520530
2018MH-2018QRQYQGCRed1.82.48012062063020120
Yellow1.82.480120580590
Pure Green2.83.4300500520530

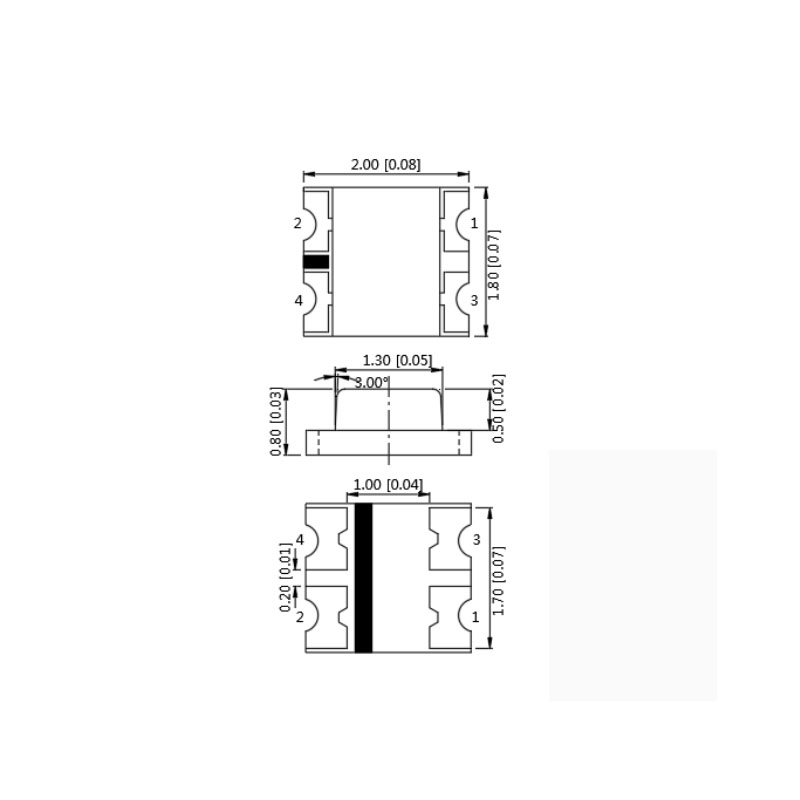

Lead Frame led

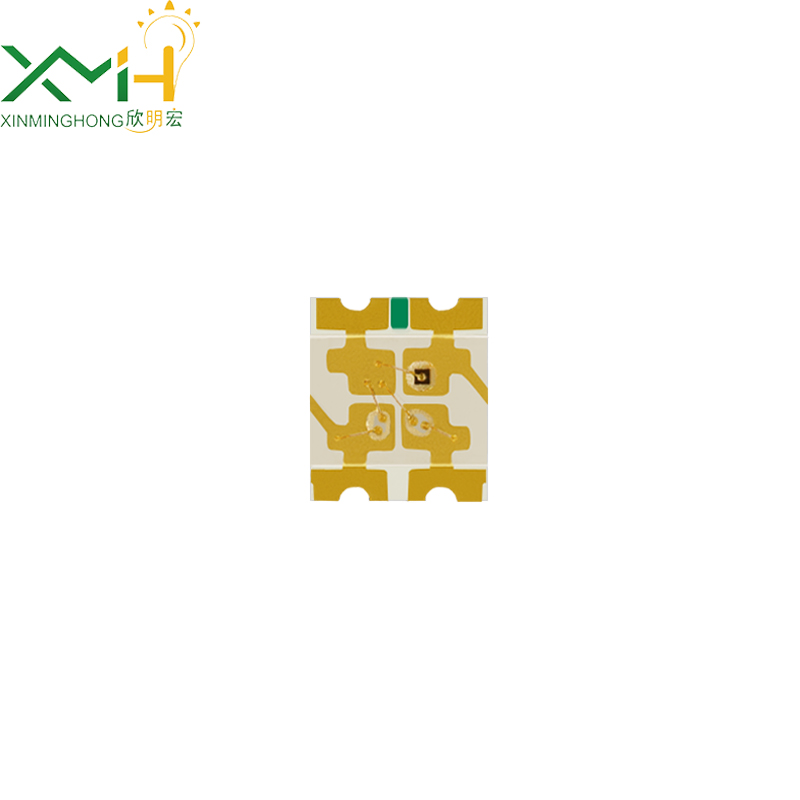

Lead Frame led
