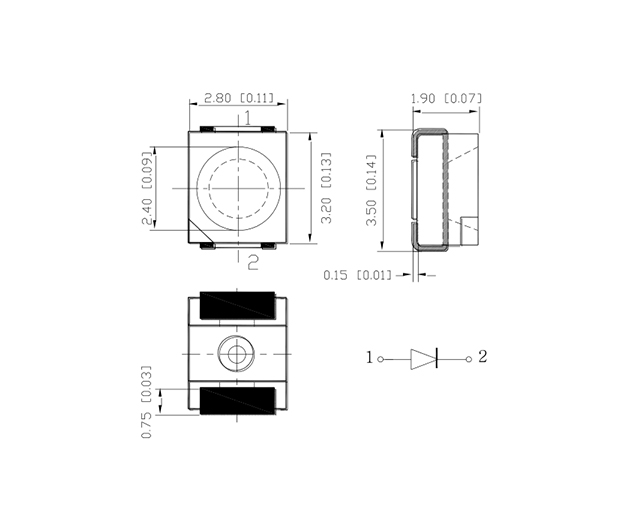

Customized service:we can produce the smd led according to the parameters and package size
Small apprearance
Low power consumption
Wide view angle
Long life
High reliablity
Energy-saving
High brightness
RoHS Compliant
Electro optical characteristics(Ta=25°C)
| Type | Part No | Emitted color | Forward voltage(Vf) | Luminous intensity | Wavelengthe(nm)/CCT(K) | Current(Ma) | Viewing angle | |||
| Min | Max | Min | Max | Min | Max | |||||
| 3528 | MH-110QRC | Red | 1.8 | 2.4 | 200 | 500 | 620 | 630 | 20 | 120 |
| 3528 | MH-110QYC | Yellow | 1.8 | 2.4 | 300 | 500 | 585 | 595 | 20 | 120 |
| 3528 | MH-110QOC | Orange | 1.8 | 2.4 | 300 | 500 | 600 | 610 | 20 | 120 |
| 3528 | MH-110QBC | Blue | 2.8 | 3.4 | 100 | 300 | 460 | 470 | 20 | 120 |
| 3528 | MH-110IBC | Ice blue | 2.8 | 3.4 | 2000 | 4000 | X:0.19 Y0.28 | 20 | 120 | |
| 3528 | MH-110QGC | Pure Green | 2.8 | 3.4 | 1500 | 2000 | 520 | 530 | 20 | 120 |
| 3528 | MH-110QPC | Purple | 3.0 | 3.4 | 6 | 12 | 390 | 400 | 20 | 120 |
| 3528 | MH-110WWC | Warm white | 2.8 | 3.4 | 1500 | 2000 | 2000 | 3000 | 20 | 120 |
| 3528 | MH-110NWC | Natural white | 2.8 | 3.4 | 2000 | 3000 | 5000 | 6500 | 20 | 120 |
| 3528 | MH-110CWC | Cool white | 2.8 | 3.4 | 2000 | 3000 | 8000 | 20000 | 20 | 120 |
