smd led

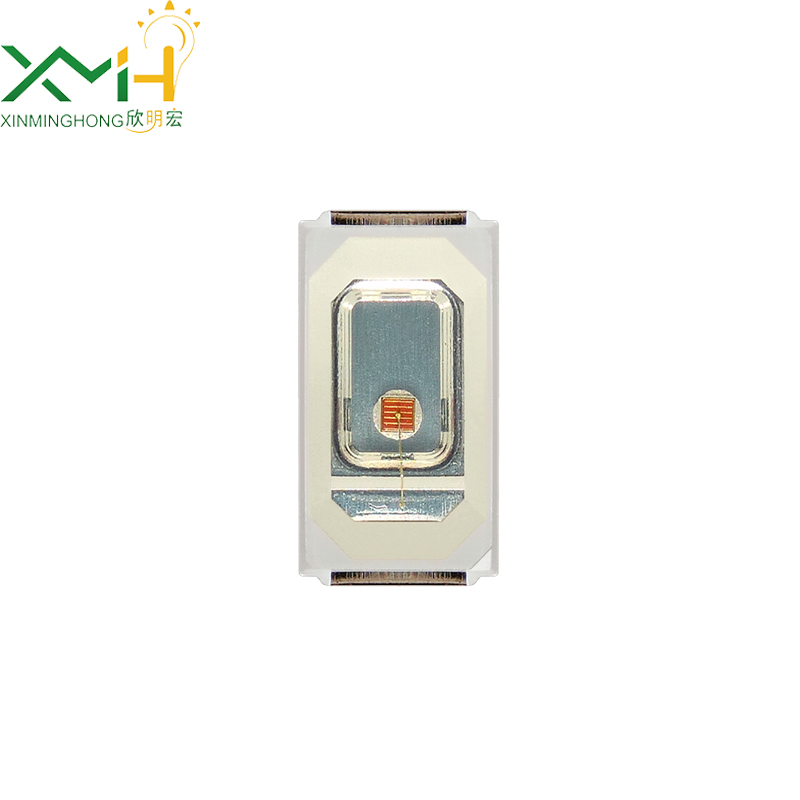

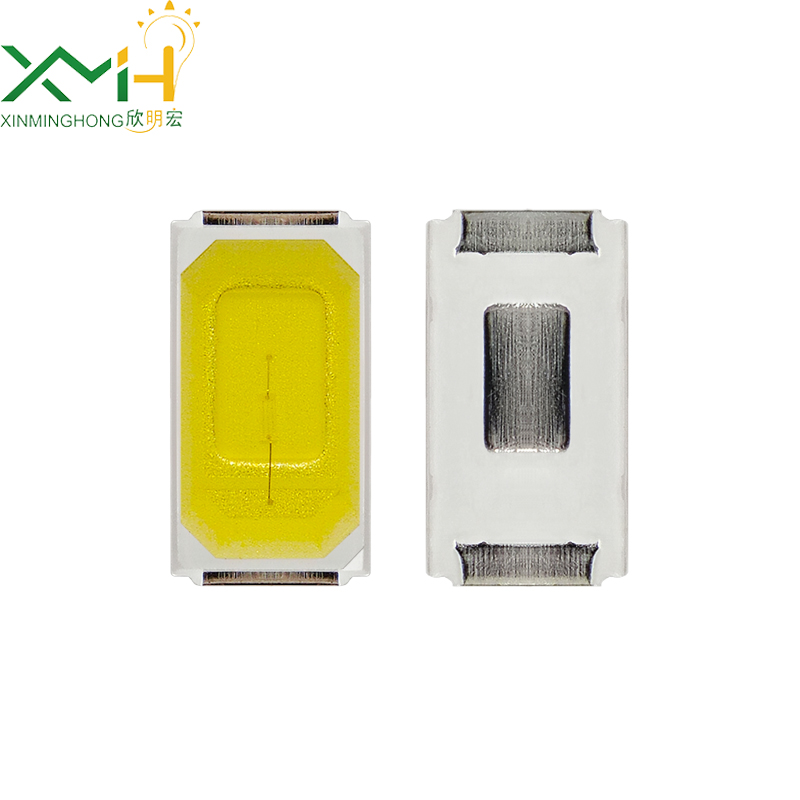

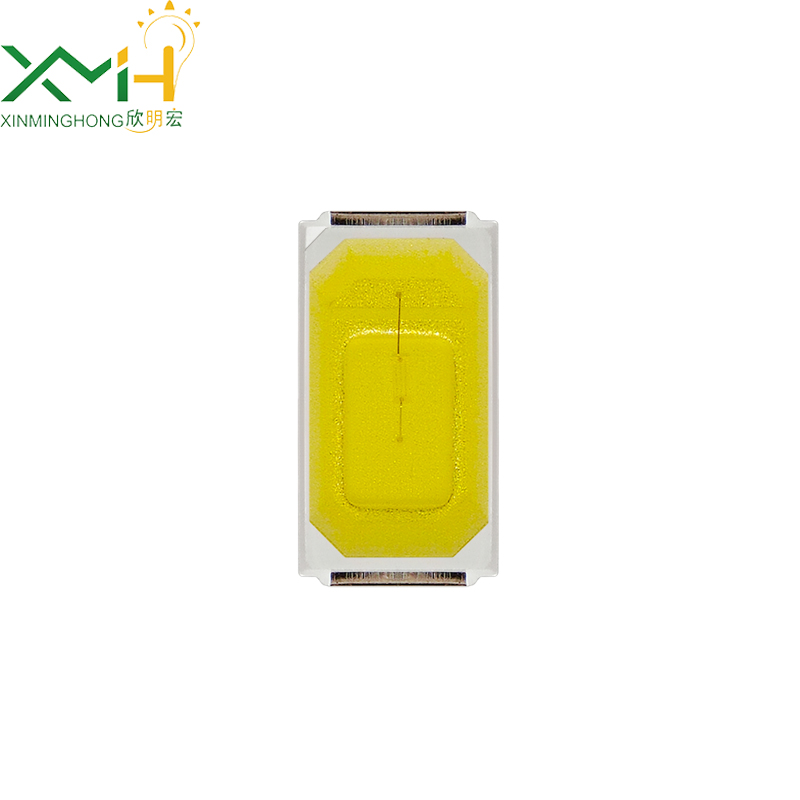

5730 monochrome

led backlight

Customized service:we can produce the smd led according to the parameters and package size


Small apprearance

Low power consumption

Wide view angle

Long life

High reliablity

Energy-saving

High brightness

RoHS Compliant


Electro optical characteristics(Ta=25°C)

TypePart NoEmitted colorForward   voltage(Vf)Luminous   intensityWavelengthe(nm)/CCT(K)Current(Ma)Viewing angle
MinMaxMinMaxMinMax
5730MH-5730QRCRed1.82.41520620630150120
5730MH-5730QYCYellow1.82.41015585595150120
5730MH-5730QOCOrange1.82.43002025610150120
5730MH-5730QBCBlue2.83.4812460470150120
5730MH-5730IBCIce   blue2.83.44550
X:0.19   Y0.28150120
5730MH-5730QGCPure   Green2.83.42030520530150120
5730MH-5730QPCPurple3.03.4710390400150120
5730MH-5730WWCWarm   white2.83.4505520003000150120
5730MH-5730NWCNatural   white2.83.4505550006500150
120
5730MH-5730CWCCool   white2.83.45060800020000150120

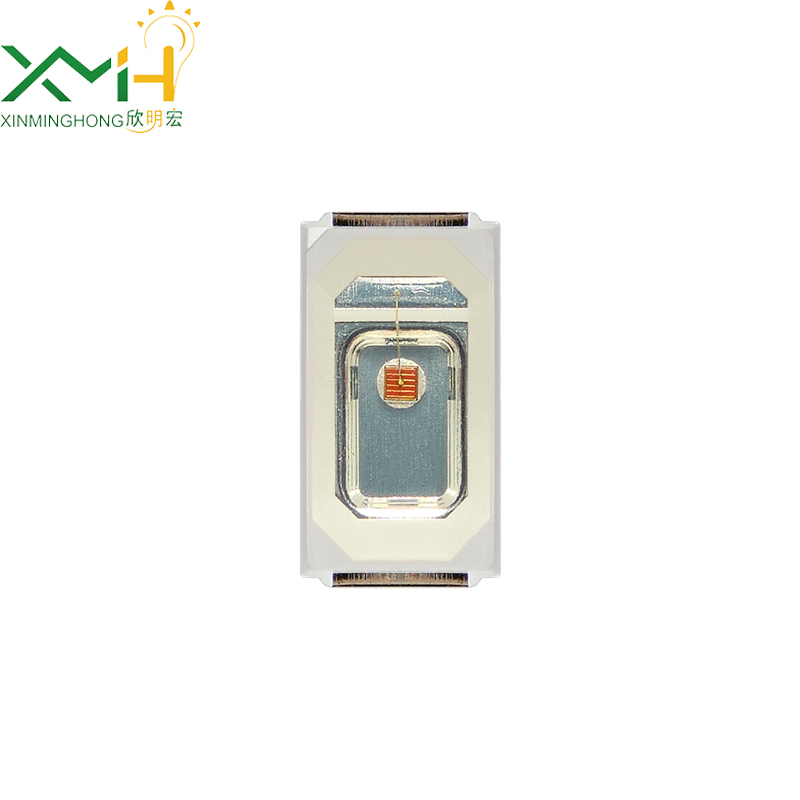

Lead Frame led
