Customized service:we can produce the smd led according to the parameters and package size
Small apprearance
0.2W power consumption
Small Angle
Long life
High reliablity
Energy-saving
High brightness
RoHS Compliant

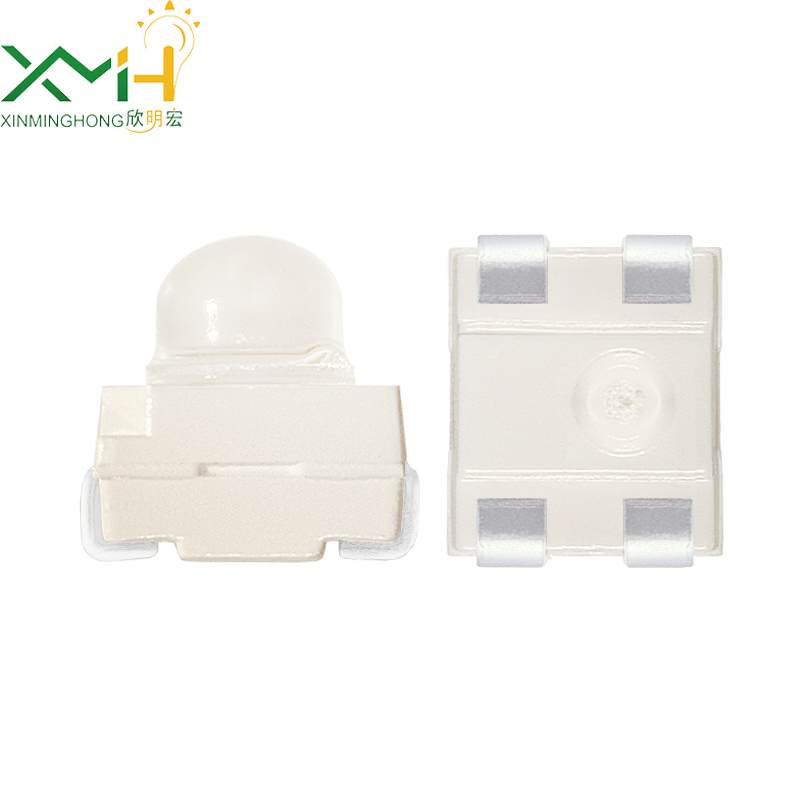

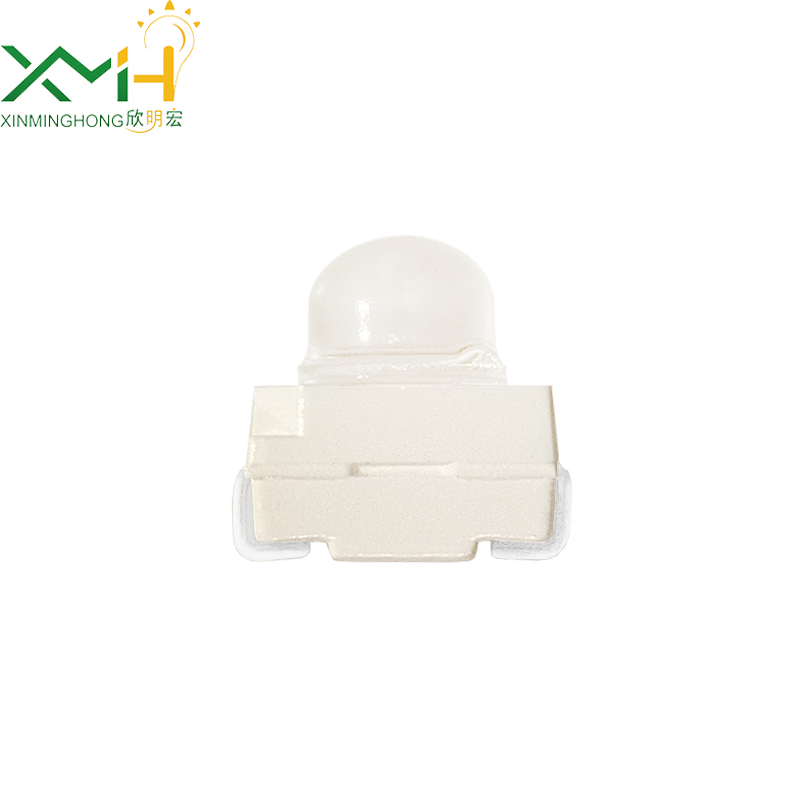

PLCC-4 3528 with
Dome Lens
Automotive Lighting LED
Electro optical characteristics(Ta=25°C)
| Type | Part No | Emitted color | Forward voltage(Vf) | Luminous flux（LM） | Wavelengthe(nm)/CCT(K) | Current(Ma) | Viewing angle | |||
| Min | Max | Min | Max | Min | Max | |||||
| 3528 | MH-3528TJQRC-0.2W | Red | 1.8 | 2.4 | 8 | 12 | 610 | 630 | 60 | 30/60 |
| 3528 | MH-3528TJQYC-0.2W | Yellow | 1.8 | 2.4 | 8 | 12 | 585 | 600 | 60 | |
| 3528 | MH-3528TJQWC-0.2W | White | 2.8 | 3.4 | 24 | 30 | 5000 | 8000 | 60 | |
