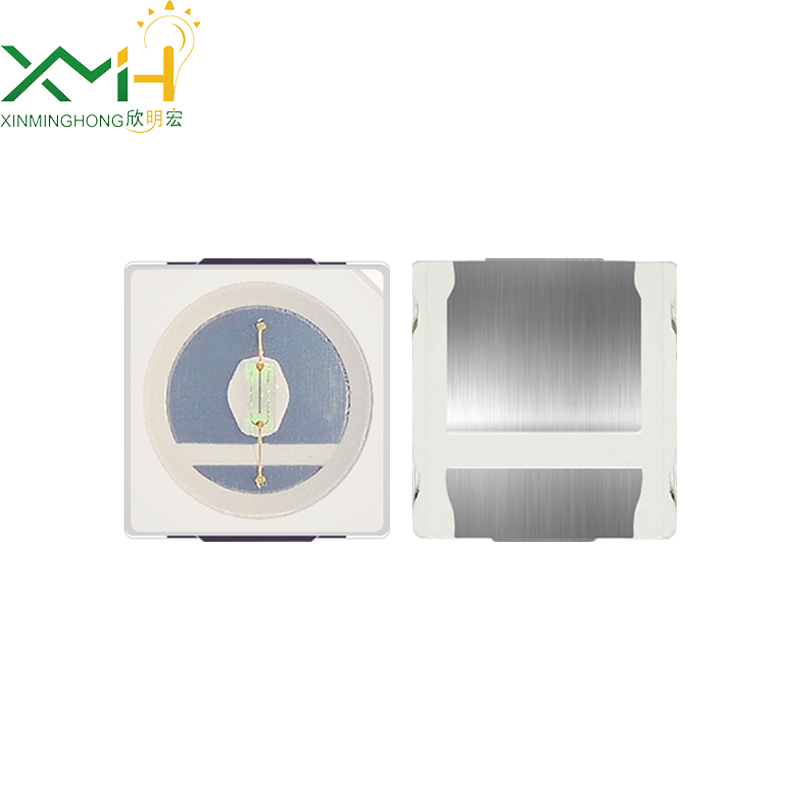

Customized service:we can produce the smd led according to the parameters and package size
Small apprearance
Low power consumption
Wide view angle
Long life
High reliablity
Energy-saving
High brightness
RoHS Compliant
Electro optical characteristics(Ta=25°C)
| Type | Part No | Emitted color | Forward voltage(Vf) | Luminous intensity(mcd/LM) | Wavelengthe(nm)/CCT(K) | Current(Ma) | Viewing angle | |||
| Min | Max | Min | Max | Min | Max | |||||
| 3030 | MH-3030QRC | Red | 1.8 | 2.4 | 18 | 22 | 620 | 630 | 150 | 120 |
| 3030 | MH-3030QYC | Yellow | 1.8 | 2.4 | 10 | 15 | 585 | 595 | 150 | 120 |
| 3030 | MH-3030QOC | Orange | 1.8 | 2.4 | 80 | 20 | 25 | 610 | 150 | 120 |
| 3030 | MH-3030QBC | Blue | 2.8 | 3.4 | 400 | 8 | 12 | 470 | 150 | 120 |
| 3030 | MH-3030QGC | Pure Green | 2.8 | 3.4 | 500 | 30 | 35 | 530 | 150 | 120 |
| 3030 | MH-3030WWC | White | 2.8 | 3.4 | 55 | 60 | 5000 | 12000 | 150 | 120 |
