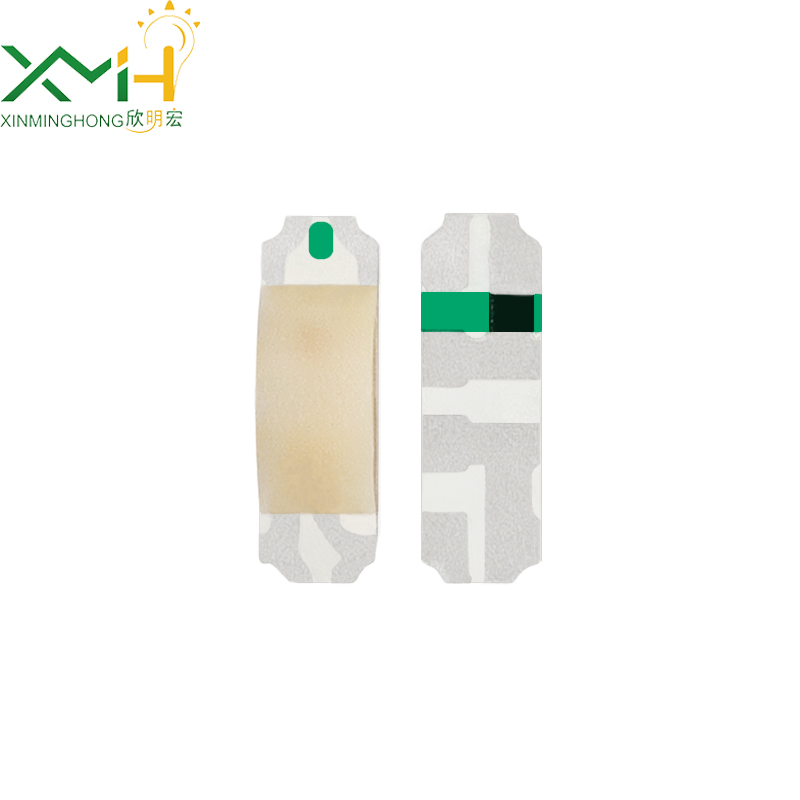

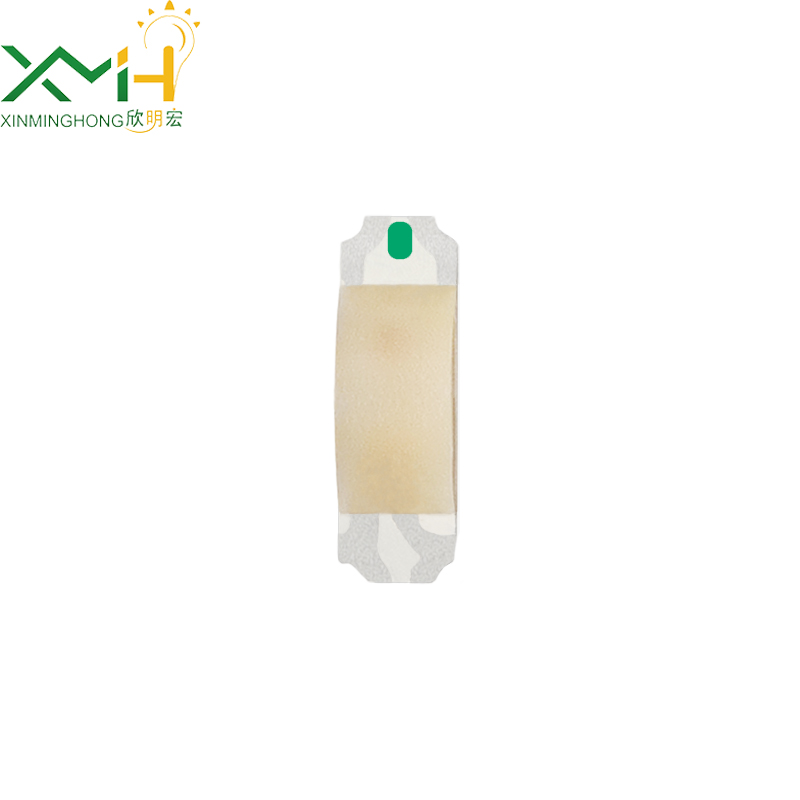

1204 RGB Built-in IC

Customized service:

✦ we can produce the smd led according to the parameters and package size

Functional characteristics：

✦ Built-in power-on and power-off reset circuits
✦ R/G/B port withstand voltage up to 13V,Drive current 5 mA/12 mA
✦ Built-in data shaping circuit to ensure that the data through the cascade will not generate wave distortion accumulation
✦ 256-level grayscale adjustable
✦ Data transmission frequency can reach 800Kbps
✦ At a refresh rate of 30 FPS, the number of cascades can be no less than 1024

Application area：

✦ LED full-color lettering light strings, LED full-color modules, LED soft/hard light strips, LED guardrail tubes, LED landscape/situational lighting.
✦ LED point light source, LED pixel screen, LED irregular screen, chassis fan ambient light, various electronic products, electrical appliances, scrolling lights.
